Integra Trim Cellular
Easily fitted. Superb flat roof finish. Lasting weather protection.
From garages and garden rooms to large construction projects, Integra Trim beautifully finishes and protects EPDM flat roofs of all sizes.
SMART
AESTHETICS
TECHNICAL
SUPPORT
TRAINED
INSTALLER
NETWORK
TOTALLY
WEATHERPROOF
FULLY
RECYCLABLE
ISO 9001
REGISTERED
PRODUCTION
Trim with Integrity
• Smartly designed to be a cost-effective choice with no compromise in functionality
• Integra Trim Cellular is ideal for projects and installers working at all levels
“A premium-quality cellular uPVC extrusion, Integra Trim Cellular looks great and solidifies the weatherproof integrity of the whole roof.”
From lengths of trim to corners and joints, each and every Integra Trim component is designed and manufactured to look great, fit together perfectly and deliver where (and when!) it counts.
Bespoke membrane sizes
Combining state of the art CAD (Computer Aided Design), uPVC extrusion and injection moulding processes to create the most efficient and reliable edge trim system available; Integra Trim solidifies the integrity of flat roof projects and the installer carrying them out.
Integra Trim Solid is precisely fitted and strongly bonded to ensure FlexiProof Fleece Backed EPDM membranes perform long-term – wind, rain or shine!
More than just a flat roof trim system, Integra Trim is integral to your flat roof project success.
Easily fitted, superb flat roof finish, lasting weather protection
Premium Materials & Technology
- Expertly designed via high-end CAD (Computer Aided Design)
- High-quality cellular uPVC extrusion
- All trim lengths, corners and joints precisely colour-matched
- All raised kerb trims pre-fitted with waterproof sealant foam strip
- Perfect for FlexiProof One Piece EPDM membranes
- Full range of CAD designed corner and joiner components for a perfect fit
- Manufactured in an ISO 9001 registered facility
- Fully recyclable
Fast & Safe
Installation
- All lengths of trims are pre-drilled at the correct spacing for fast and accurate Polytop fixing (stainless steel fixings with colour-matched Polytops also provided)
- Internal/external corner and joiner components CAD designed to fit snugly into place for a watertight seal
- All components quickly and easily glued into place
Long Term
Success
- Fully weatherproof
- Long-lasting performance
- Seamless finish
Colours to compliment every building & roof
Integra Trim Cellular is available in:
Raised Kerb Trim Lengths
Integra Trim Raised Kerb Trim is easily installed, looks great and delivers an effective water check upstand along flat roof perimeters – no need to fit a timber upstand!
Fitted with a high quality foam strip along the underside edge to create a solid, watertight compression seal with FlexiProof One Piece EPDM roof membranes
- Provides a 20mm water check upstand along the roof perimeter
- 10mm x 15mm foam compression strip creates a watertight seal with FlexiProof One Piece EPDM membranes, even over seams and joints
- Available in convenient 2.5m lengths
- Smart matt/semi-gloss finish
Length Dimensions
2.5m (L) x 100mm (D)
Raised Kerb Trim

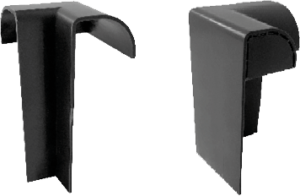

Internal & External Corners
High quality uPVC external corners easily fit onto Raised Kerb Trim to deliver a seamless finish and long-lasting protection.
Easily join two lengths of Raised Kerb Trim wherever they meet on an external right angle.
- Designed and manufactured to snugly fit onto Raised Kerb Trim
- Quickly glues into place
- Low profile, seamless finish
External Corner Dimensions 57mm (W) x 100mm (D)
Internal Corner Dimensions 20mm (W) x 100mm (D)
Raised Kerb Trim

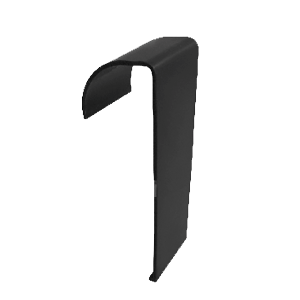

Joiners
High quality uPVC external joiner components easily fit onto Raised Kerb Trim to deliver a seamless join with long-lasting protection.
- Designed and manufactured to snugly fit onto, and effectively join, lengths of Raised Kerb Trim
- Quickly glues into place
- Low profile, seamless finish
Dimensions 40mm (W) x 100mm (D)
Gutter Trim Lengths
Integra Trim Gutter Trim is fitted to the timber batten on the roof fascia via its back plate.
Its front plate, with compression seal foam strip, creates a watertight seal with FlexiProof One Piece EPDM membranes (even over seams and joints).
Easy to install and creates an effective gutter drip edge, every time!
- 10mm thick back plate provides a perfect surface to adhere FlexiProof One Piece EPDM membranes onto
- Sloping edge on back plate ensures easy front plate alignment
- Available in convenient 2.5m lengths
- Smart matt/semi-gloss finish
Length Dimensions
2.5m (L) x 76mm (D)
Gutter Trim

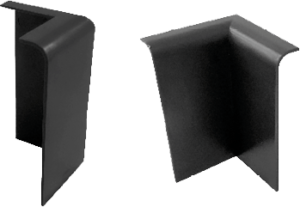

Internal & External Corners
High quality uPVC internal & external corner components easily fit onto Gutter Trim to deliver a seamless finish and long-lasting protection.
Easily join two lengths of Gutter Trim wherever they meet on an internal or external right angle.
- Designed and manufactured to snugly fit onto Gutter Trim
- Quickly glues into place
- Low profile, seamless finish
External Corner Dimensions 44mm (W) x 76mm (D)
Internal Corner Dimensions 40mm (W) x 76mm (D)
Gutter Trim

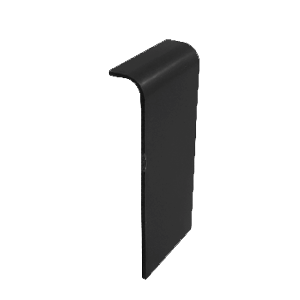

Joiners
High quality uPVC external joiner components easily fit onto Gutter Trim to deliver a seamless join with long-lasting protection.
- Designed and manufactured to snugly fit onto, and effectively join, lengths of Gutter Trim
- Quickly glues into place
- Low profile, seamless finish
Dimensions 40mm (W) x 76mm (D)
Product Guides
FlexiProof Integra Trim Cellular
Product Guide
